Reducer outside diameter 508,0 - DIN 2616
All details without our obligation

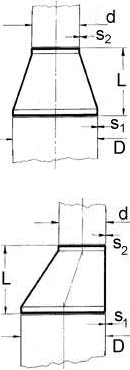

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
| tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
|---|---|---|---|---|---|---|---|
| conc. abt. mm | ecc. abt. mm | ||||||
| 508,0 | 219,1 | 11 | 6,3 | 508 | - | 6,0 | 68 |
| 508,0 | 219,1 | 12,5 | 12,5 | 508 | - | 6,0 | 78/ - |
| 508,0 | 219,1 | 16 | 8 | 508 | - | 6,0 | 98 |
| 508,0 | 219,1 | 25 | 12,5 | 508 | - | 6,0 | 151/ - |
| 508,0 | 267 | 11 | 6,3 | 508 | 625 | 6,0 | 68/84 |
| 508,0 | 273 | 11 | 6,3 | 508 | 625 | 6,0 | 68/84 |
| 508,0 | 273 | 12,5 | 12,5 | 508 | 625 | 6,0 | 78/95 |
| 508,0 | 273 | 16 | 8,8 | 508 | 625 | 6,0 | 98/121 |
| 508,0 | 273 | 25 | 14,2 | 508 | 625 | 6,0 | 151/186 |
| 508,0 | 323,9 | 11 | 7,1 | 508 | 508 | 6,0 | 68 |
| 508,0 | 323,9 | 12,5 | 12,5 | 508 | 508 | 6,0 | 78 |
| 508,0 | 323,9 | 16 | 10 | 508 | 508 | 6,0 | 98 |
| 508,0 | 323,9 | 25 | 16 | 508 | 508 | 6,0 | 151 |
| 508,0 | 355,6 | 11 | 8 | 508 | 508 | 6,0 | 68 |
| 508,0 | 355,6 | 12,5 | 12,5 | 508 | 508 | 6,0 | 78 |
| 508,0 | 355,6 | 16 | 11 | 508 | 508 | 6,0 | 98 |
| 508,0 | 355,6 | 25 | 17,5 | 508 | 508 | 6,0 | 151 |
| 508,0 | 368 | 11 | 8 | 508 | 508 | 6,0 | 68 |
| 508,0 | 406,4 | 11 | 8,8 | 508 | 508 | 6,0 | 68 |
| 508,0 | 406,4 | 12,5 | 12,5 | 508 | 508 | 6,0 | 78 |
| 508,0 | 406,4 | 16 | 12,5 | 508 | 508 | 6,0 | 98 |
| 508,0 | 406,4 | 25 | 20 | 508 | 508 | 6,0 | 151 |
| 508,0 | 419 | 11 | 10 | 508 | 508 | 6,0 | 68 |
| 508,0 | 457 | 11 | 10 | 508 | 508 | 6,0 | 68 |
| 508,0 | 457 | 12,5 | 12,5 | 508 | 508 | 6,0 | 78 |
| 508,0 | 457 | 16 | 14,2 | 508 | 508 | 6,0 | 98 |
| 508,0 | 457 | 25 | 22,2 | 508 | 508 | 6,0 | 151 |
| 508,0 | 470 | 11 | 10 | 508 | 508 | 6,0 | 68 |
