Reducer outside diameter 457,0 - DIN 2616
All details without our obligation

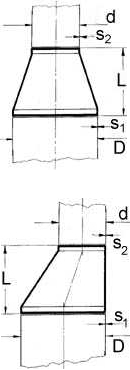

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
| tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
|---|---|---|---|---|---|---|---|
| conc. abt. mm | ecc. abt. mm | ||||||
| 457,0 | 219,1 | 10 | 6,3 | 381 | 625 | 5,0 | 42/63 |
| 457,0 | 219,1 | 14,2 | 8 | 381 | 625 | 5,0 | 59/96 |
| 457,0 | 267 | 10 | 6,3 | 381 | 525 | 5,0 | 42/55 |
| 457,0 | 273 | 10 | 6,3 | 381 | 525 | 5,0 | 42/55 |
| 457,0 | 273 | 12,5 | 12,5 | 381 | 525 | 5,0 | 52/72 |
| 457,0 | 273 | 14,2 | 8,8 | 381 | 525 | 5,0 | 59/81 |
| 457,0 | 273 | 22,2 | 14,2 | 381 | 525 | 5,0 | 90/125 |
| 457,0 | 323,9 | 10 | 7,1 | 381 | 381 | 5,0 | 42 |
| 457,0 | 323,9 | 12,5 | 12,5 | 381 | 381 | 5,0 | 52 |
| 457,0 | 323,9 | 14,2 | 10 | 381 | 381 | 5,0 | 59 |
| 457,0 | 323,9 | 22,2 | 16 | 381 | 381 | 5,0 | 90 |
| 457,0 | 355,6 | 10 | 8 | 381 | 381 | 5,0 | 42 |
| 457,0 | 355,6 | 12,5 | 12,5 | 381 | 381 | 5,0 | 52 |
| 457,0 | 355,6 | 14,2 | 11 | 381 | 381 | 5,0 | 59 |
| 457,0 | 355,6 | 22,2 | 17,5 | 381 | 381 | 5,0 | 90 |
| 457,0 | 368 | 10 | 8 | 381 | 381 | 5,0 | 42 |
| 457,0 | 406,4 | 10 | 8,8 | 381 | 381 | 5,0 | 42 |
| 457,0 | 406,4 | 12,5 | 12,5 | 381 | 381 | 5,0 | 52 |
| 457,0 | 406,4 | 14,2 | 12,5 | 381 | 381 | 5,0 | 59 |
| 457,0 | 406,4 | 22,2 | 20 | 381 | 381 | 5,0 | 90 |
| 457,0 | 419 | 10 | 10 | 381 | 381 | 5,0 | 42 |
