Reducer outside diameter 419,0 - DIN 2616
All details without our obligation

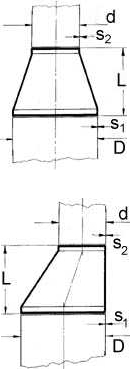

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
| tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
|---|---|---|---|---|---|---|---|
| conc. abt. mm | ecc. abt. mm | ||||||
| 419,0 | 219,1 | 10 | 6,3 | 355 | 355 | 5,0 | 35 |
| 419,0 | 267 | 10 | 6,3 | 355 | 355 | 5,0 | 35 |
| 419,0 | 273 | 10 | 6,3 | 355 | 355 | 5,0 | 35 |
| 419,0 | 323,9 | 10 | 7,1 | 355 | 355 | 5,0 | 35 |
| 419,0 | 355,6 | 10 | 8 | 355 | 355 | 5,0 | 35 |
| 419,0 | 368 | 10 | 8 | 355 | 355 | 5,0 | 35 |
