Reducer outside diameter 159,0 - DIN 2616
All details without our obligation

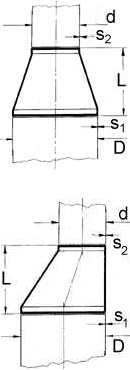

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
---|---|---|---|---|---|---|---|
conc. abt. mm | ecc. abt. mm | ||||||
159,0 | 108 | 4,5 | 3,6 | 140 | 140 | 3,5 | 2,3 |
159,0 | 114,3 | 4,5 | 3,6 | 140 | 140 | 3,5 | 2,3 |
159,0 | 133 | 4,5 | 4 | 140 | 140 | 3,5 | 2,3 |
159,0 | 139,7 | 4,5 | 4 | 140 | 140 | 3,5 | 2,3 |
159,0 | 57 | 4,5 | 2,9 | 140 | 140 | 3,5 | 2,3 |
159,0 | 60,3 | 4,5 | 2,9 | 140 | 140 | 3,5 | 2,3 |
159,0 | 76,1 | 4,5 | 2,9 | 140 | 140 | 3,5 | 2,3 |
159,0 | 88,9 | 4,5 | 3,2 | 140 | 140 | 3,5 | 2,3 |
