Reducer outside diameter 139,7 - DIN 2616
All details without our obligation

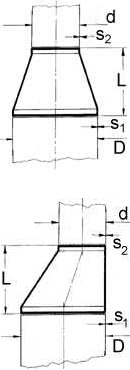

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
---|---|---|---|---|---|---|---|
conc. abt. mm | ecc. abt. mm | ||||||
139,7 | 101,6 | 10 | 8 | 127 | 127 | 3,5 | 4 |
139,7 | 101,6 | 4 | 3,6 | 127 | 127 | 3,5 | 1,7 |
139,7 | 101,6 | 6,3 | 5,6 | 127 | 127 | 3,5 | 2,6 |
139,7 | 108 | 4 | 3,6 | 127 | 127 | 3,5 | 1,7 |
139,7 | 114,3 | 10 | 8,8 | 127 | 127 | 3,5 | 4 |
139,7 | 114,3 | 4 | 3,6 | 127 | 127 | 3,5 | 1,7 |
139,7 | 114,3 | 6,3 | 6,3 | 127 | 127 | 3,5 | 2,6 |
139,7 | 60,3 | 10 | 5,6 | 127 | 127 | 3,5 | 4 |
139,7 | 60,3 | 4 | 2,9 | 127 | 127 | 3,5 | 1,7 |
139,7 | 60,3 | 6,3 | 4,5 | 127 | 127 | 3,5 | 2,6 |
139,7 | 76,1 | 10 | 7,1 | 127 | 127 | 3,5 | 4 |
139,7 | 76,1 | 4 | 2,9 | 127 | 127 | 3,5 | 1,7 |
139,7 | 76,1 | 6,3 | 5 | 127 | 127 | 3,5 | 2,6 |
139,7 | 88,9 | 10 | 8 | 127 | 127 | 3,5 | 4 |
139,7 | 88,9 | 4 | 3,2 | 127 | 127 | 3,5 | 1,7 |
139,7 | 88,9 | 6,3 | 5,6 | 127 | 127 | 3,5 | 2,6 |
