Reducer outside diameter 101,6 - DIN 2616
All details without our obligation

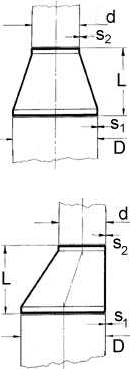

eccentric acc. to DIN 2616 Pt. 1
concentric acc. to DIN 2616 Pt. 2
Made from seamless tubes DIN 2448 of carbon steel St 35.8 I acc. to DIN 17175
wallthicknesses of 3 mm and thicker: with bevelled ends acc. to DIN 2559 form 22
| tube od D (mm) | tube od d (mm) | wallthn. s1 (mm) | wallthn. s2 (mm) | Length | tolerance +/- mm | weight abt. kg | |
|---|---|---|---|---|---|---|---|
| conc. abt. mm | ecc. abt. mm | ||||||
| 101,6 | 48,3 | 3,6 | 2,6 | 100 | 100 | 3,0 | 0,88 |
| 101,6 | 57 | 3,6 | 2,9 | 100 | 100 | 3,0 | 0,88 |
| 101,6 | 60,3 | 3,6 | 2,9 | 100 | 100 | 3,0 | 0,88 |
| 101,6 | 60,3 | 5,6 | 4,5 | 100 | 100 | 3,0 | 1,18 |
| 101,6 | 60,3 | 8 | 5,6 | 100 | 100 | 3,0 | 1,64 |
| 101,6 | 76,1 | 3,6 | 2,9 | 100 | 100 | 3,0 | 0,88 |
| 101,6 | 76,1 | 5,6 | 5 | 100 | 100 | 3,0 | 1,18 |
| 101,6 | 76,1 | 8 | 7,1 | 100 | 100 | 3,0 | 1,64 |
| 101,6 | 88,9 | 3,6 | 3,2 | 100 | 100 | 3,0 | 0,88 |
| 101,6 | 88,9 | 5,6 | 5,6 | 100 | 100 | 3,0 | 1,18 |
| 101,6 | 88,9 | 8 | 8 | 100 | 100 | 3,0 | 1,64 |
